Buy Now: Hydraulic Six Degree of Freedom Motion Platform for Solar Industry

Asking Price: $68,000

• HEXAD 3000H-13/Computer/Controller

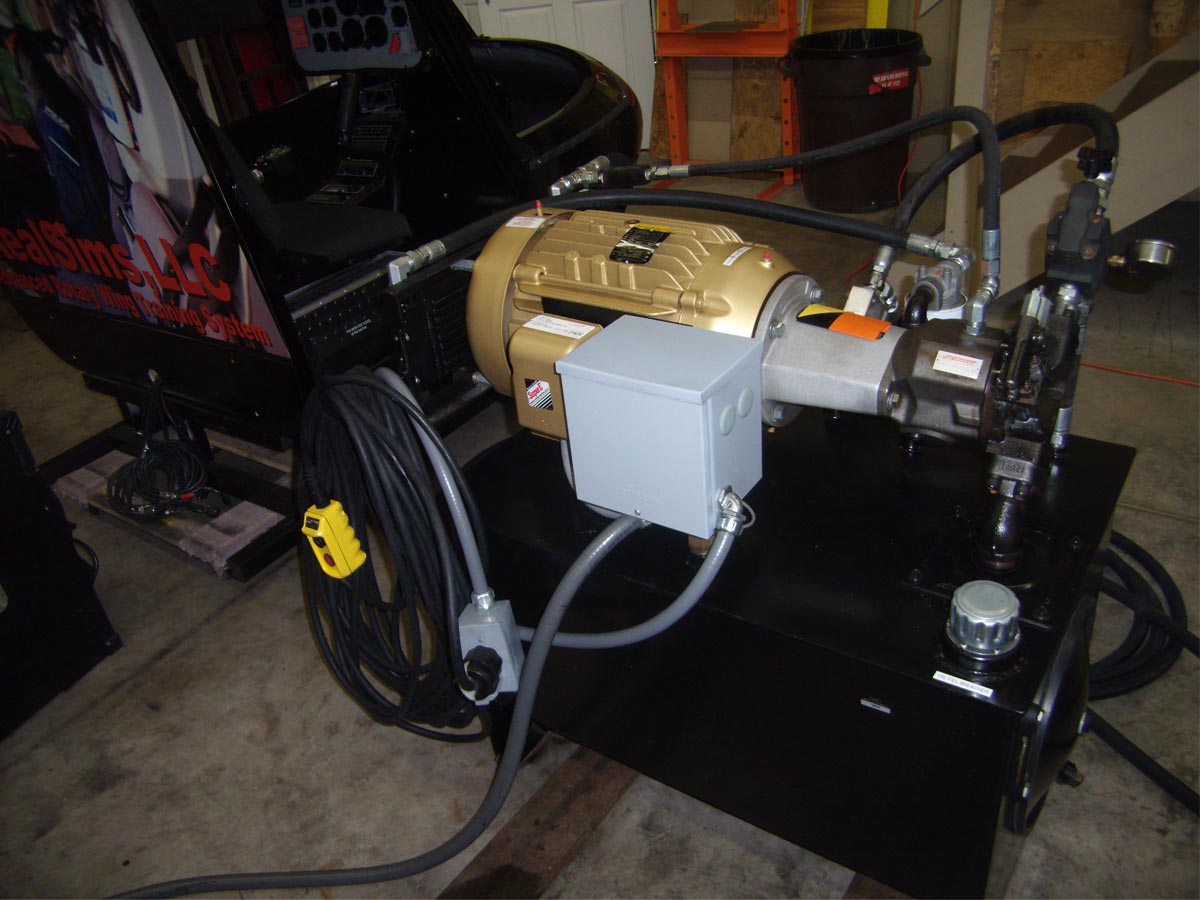

• 15HP – Hydraulic Pumping Unit (HPU)

System Configuration:

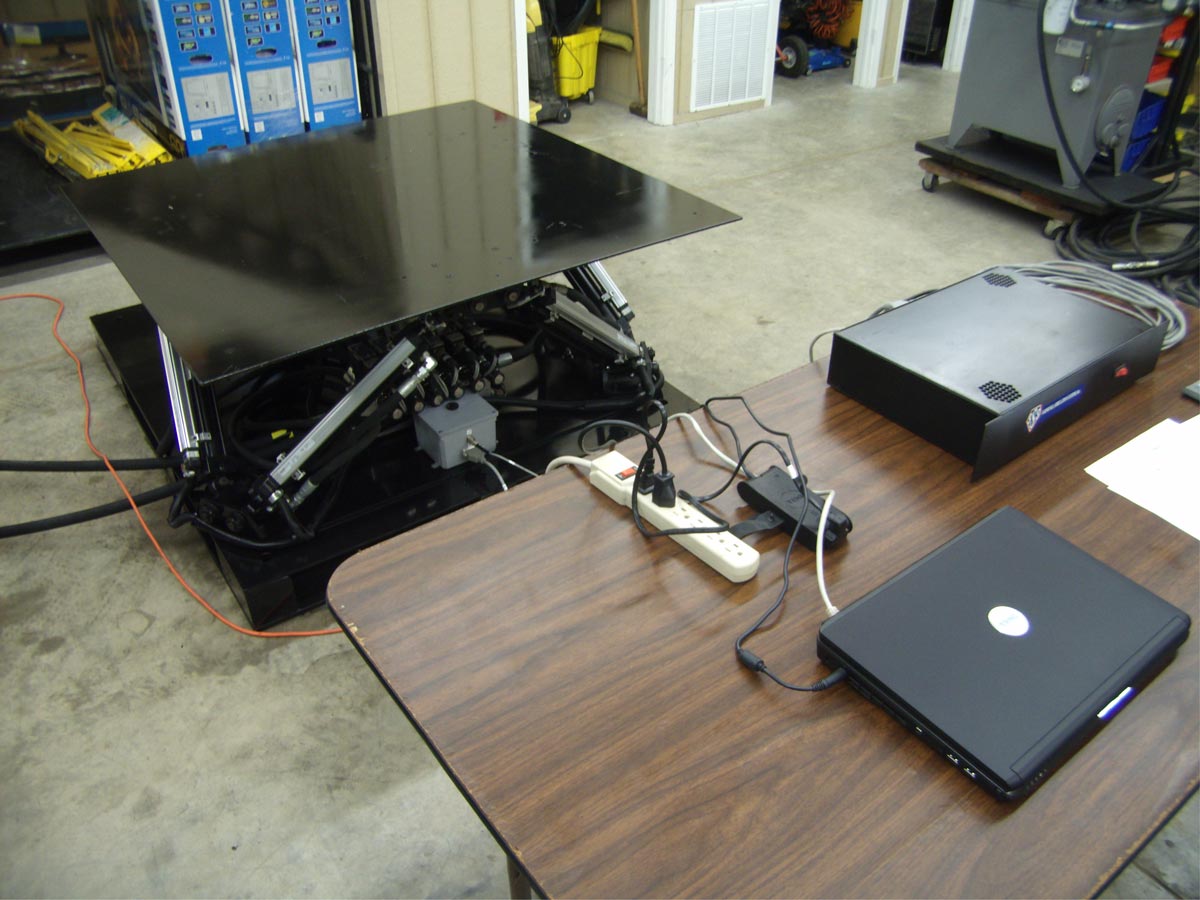

• One 6 DOF Hydraulic Motion Platform
• 15HP Hydraulic Pumping Unit (HPU)
• Computer/Controller Package
• Hose and Control Cable Module for nominal 25' installation
• Complete Software Package
• Documentation

Specifications:

• Dimensions: 48 “W x 64”L x 26”H
• Capacity: 3,000 Lbs. payload

Dynamics:

• Excursion (in, deg): 10 (+/-X), 10 (+/-Y), 8.5 (+/-Z), 30 (+/-YAW), 30 (+/-PITCH), 25 (+/-ROLL)
• Velocity (in/s, deg/s): 24 (+/-X), 24 (+/-Y), 24 (+/-Z), 35 (+/-YAW), 35 (+/-PITCH), 35 (+/-ROLL)
• Acceleration (g, deg/s/s): 2.0 (+/-X), 2.0 (+/-Y), 2.0 (+/-Z), 600 (+/-YAW), 600 (+/-PITCH), 600 (+/-ROLL)

System Condition:
The system is used but in excellent condition. The system was used intermittently for a period of approximately two years and then set dormant for three years. It has been completely reconditioned with new wiring, hydraulic hoses, computer and controller.

Potential Uses:
Flight Simulation, Ship Simulation, Entertainment, Medical Equipment, Testing, Research, Project Experimentation, Product Development, Physical Therapy, etc.
